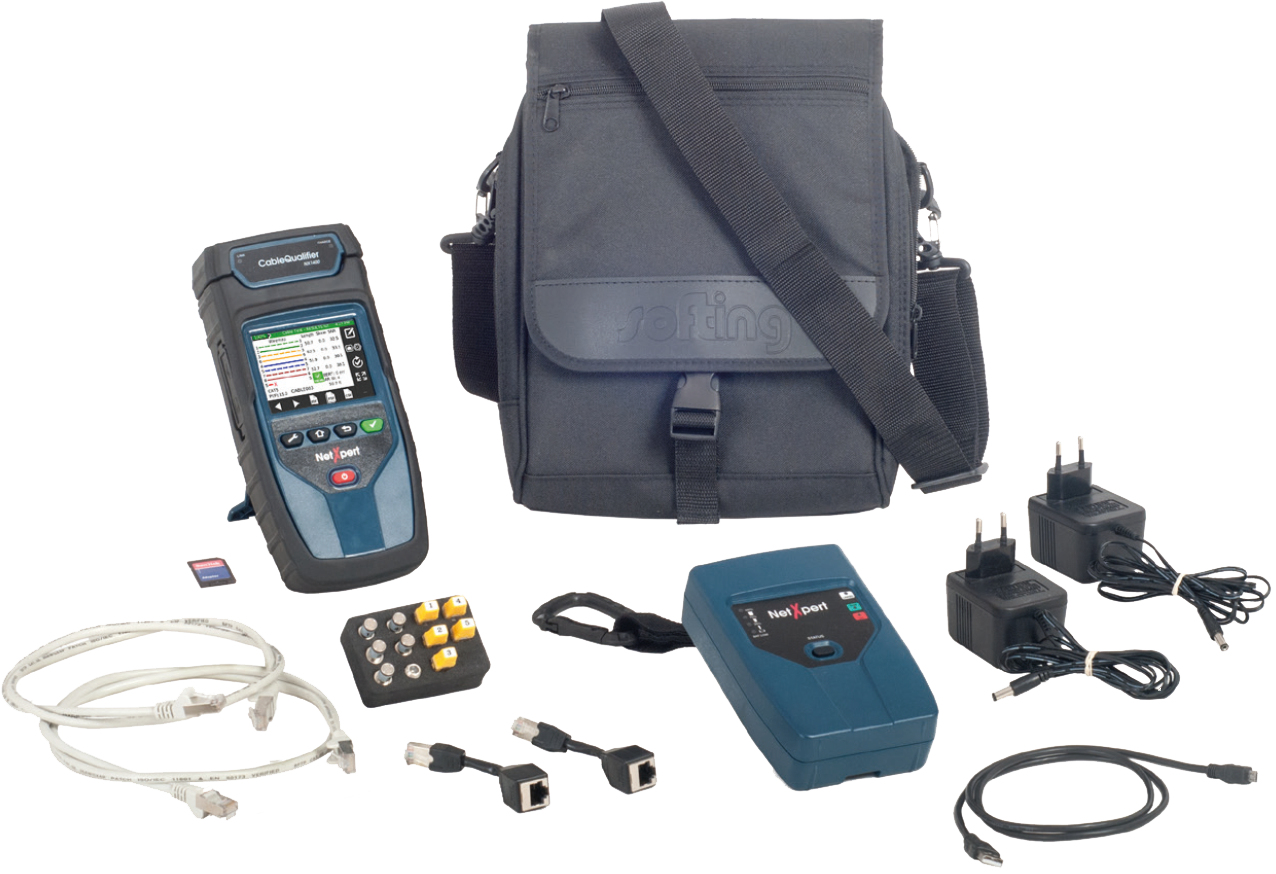

NetXpert 1400 – Speed Certification, Cable Testing, Network Troubleshooting

The NetXpert 1400 provides a complete solution for cable qualification and troubleshooting of active networks, enabling rapid, simple verification and documentation of the capability of cabling links to support Gigabit Ethernet operation compliant with the IEEE 802.3ab standard.

Irrespective of the category of cables and connectors installed, a “Pass/Fail” result indicates whether the existing cabling can support data rates up to 1Gbit/s.

  • Tests network cabling and coaxial cabling
  • Qualifies data cabling for IEEE 802.3 compliance at transmission rates of up to 1Gbit/s (BERT)
  • Determines signal-to-noise ratio (SNR)
  • Measures delay skew
  • Performs full TDR for pair length and distance to fault measurements
  • Full-color wire map shows opens, shorts, miswires, and split pairs
  • Results can be saved in the tester, and standards-based measurement reports providing ”Pass/Fail“ results can be generated

Request a Demo:

Measurement Technology Time Domain Reflectometry (TDR)
Cable Measurements



Cable Testing and ID: up to 1,000 ft. (305 m)

Split Pair Detection: 3 ft. (1 m) to 1,000 ft. (305 m)

Length Measurement: 0 to 1,500 ft. (457 m), ± (5%+1ft)

Distance to fault: 0 to 200 m ± (5% + 1m)

Supports 8 continuity and ID numbers remotes (RJ 45)

Supports 20 RJ 45 and 20 F connector ID only remotes

Power over Ethernet Tests for IEEE 802.3af and IEEE 802.3at (PoE +) compliant PoE

Tests for classes and loads cable up to 25.5 watts (at class 4 Identifies Mode A or B (pairs with PoE)

Active Ethernet Indicates advertised speeds of 10/100/1000 base-T half or full duplex

Can Link to network at 10/100 base-T

Maximum Voltage Parameters refer to the maximum voltage that can be applied to any 2 connector pins without causing damage to the tester

– RJ Jack: 66 VDC or 55 VAC

– F-connector: 50 VDC or VAC

Saved Test Results Stores up to 250 Cable or network tests with user defined names
Tone Generation Tone Frequencies: 730 Hz and 1440 Hz
Languages English, French, German, Spanish
Battery Li-Ion Akku, 7,2 VDC, 5,500 mA-hr (typical)

Battery Life – ca. 32 hrs, 16 hrs with gigabit link, 55 hrs stand-by

Temperature Operating: 32 to 122°F (0 to 50°C)

Storage: -22 to 140°F (-30 to 60°)

Humidity 10 to 90% non-condensing
Enclosure High-strength PC/ABS plastic with VO rating with boot

Withstands 4 foot (1,20m) drop on to concrete

Display 3,5“ Color Touch Screen Display
Size 6 x 10 x 23 cm
Weight With batteries 508 g
