The NEW SINAMICS V20 is surprisingly versatile, features quick commissioning times, robustness, and energy efficiency.  With four frame sizes, it covers a power range extending from 0.16 to 20 HP. The V20 has a compact design, and can be individually adapted to the particular application or user requirements using various options – for example, an external BOP, connecting cable, filter, braking resistors, shielding. The rugged construction is ideal for operating pumps, fans, compressors and conveyor belts, as well as for basic drive applications in the process and manufacturing industries.

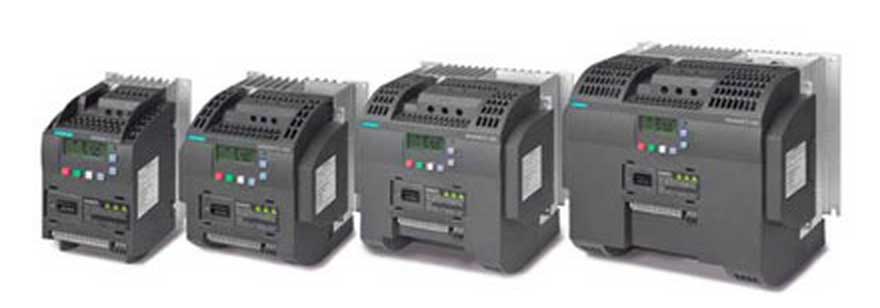

Siemens V20 Drives


  • Push-through and wall mounting – side-by-side possible for both
  • USS and MODBUS RTU at terminals
  • Integrated braking chopper from 7.5 kW to 15 kW
  • Parameter loading without power supply
  • Integrated application and connection macros
  • Keep Running Mode for uninterrupted operation
  • Wide voltage range, advanced cooling design and coated PCBs increase robustness
  • ECO mode for V/f, V2/f
  • Hibernation mode
  • DC coupling

Technical Information

  • Voltage range:  1AC 200 V – 240 V, ±10 %; 3AC 380 V – 480 V +10 % / -15 %
  • Power range:  1/6 to 20 HP (0.12 – 15 kW)
  • Control Types: V/Hz, V2/Hz, FCC, V/Hz multi-point
  • Standards: UL, cUL, CE, c-tick
  • Operating Temperature: 32° to 140°F (104°-140°F with derating) 0° to 60°C (40°C to 60°C with derating)
  • Degree of Protection: IP20
