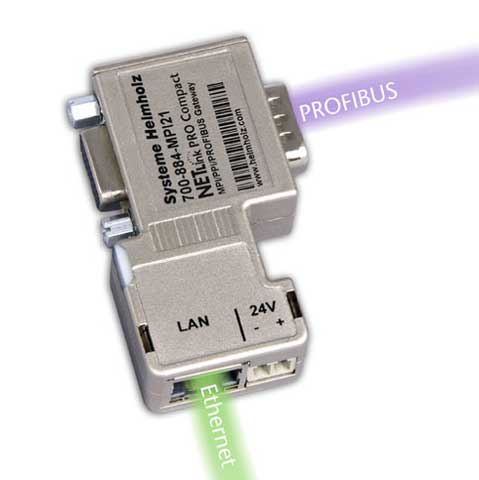

700-884-MPI21 NETLink® PRO Compact PROFIBUS Ethernet Gateway

NETLink PRO Compact is a PROFIBUS – Ethernet gateway that can be connected to any MPI/PROFIBUS interface and an Ethernet network using standard Cat-5 for programming, communication/data logging or Teleservice.  The supplied driver embeds itself into Siemens S7 Engineering tools.

Features:

  • RFC 1006 (ISO on TCP)
  • CPU to CPU Communication
  • Power supply from the CPU or external 24DC
  • Support for all common Siemens Engineering Tools (e.g. STEP 7, SCOUT, WinCC flexible)
  • Dynamic address assignments with DHCP
  • Up to 16 TCP connections
  • Up to 32 links on MPI/PROFIBUS
  • Simple web configuration interface
  • Support slave parameterization
  • MPI/PPI/PROFIBUS from 9.6 kbps to 12 Mbps

Helmholz NetlinkPro Compact datasheet
